Min. Raira:1 Piece/Pieces
Mutengo: Risinglcd
Kubudirira: 1500K
Nzvimbo Yokutanga: Shen Zhen
Certificate: CE/ROSH/UL/ISO9001

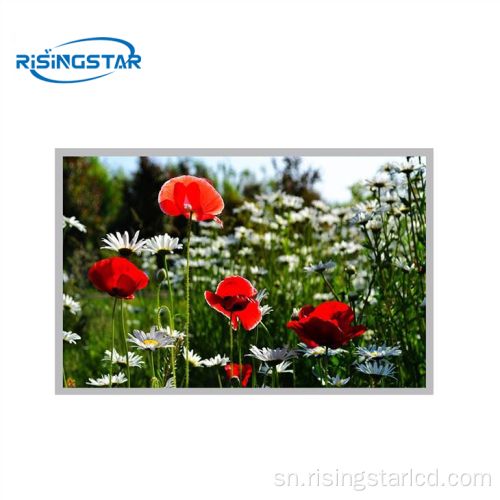

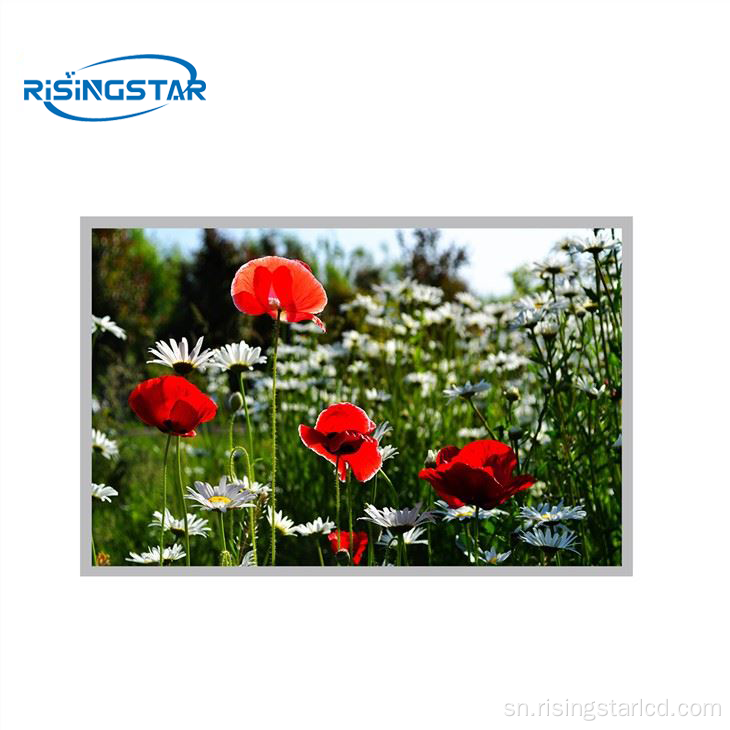

| Panel Brand | RISINGSTAR | Panel Model | RS156XW-NE10 |
| Panel Size | 15.6" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 (WXGA) 100PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 (H×V) | Surface | Antiglare, Hard coating (3H) |
| Outline Size | 363.8 × 215.9 × 17.35 (H×V×D) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness | 1000nit or customized | Display Mode | TN, Normally White, Transmissive |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M 70% NTSC | Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz | Input Voltage | 5V (Typ.) |
| Weight | 1.25/1.35Kgs (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) , Connector 30 pins |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C | ||
1.professional kunze kwekunze kupenya kweLCD Panel Mugadziri
2.Professional Brickness Brickness LCD Screen, inogona kutsungirira 110 kupisa kwakanyanya
3.s semsung, LG, BEO, Auo, Innodux Cooperative Binterprises
4.Kukupa iwe neunyanzvi hwekunze technology kutaurirana kutungamira
Mota dzinopisa: , TV LCD Panel , LCD Panel, LCD Module, Kupenya Kwakakura Kuratidzwa.
17 "1500nit Outdoor Kubata Screen
15.6 Inch 1000nit Outdoor LCD Ratidza
