Muenzaniso Nha.: LA103WF1-SL02

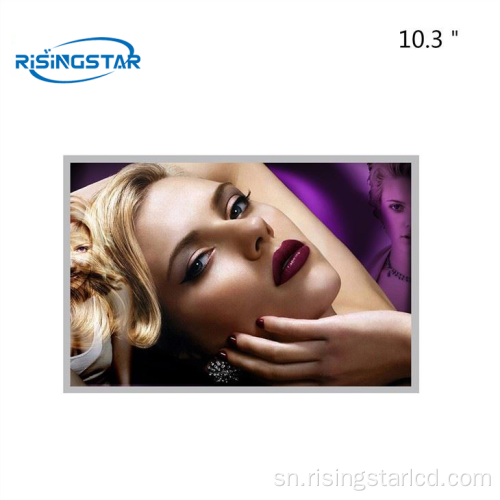

10.3 Inch LG Ratidza LA103WF1-SL02 Kupenya 850nits Sunlight inoverengwa Tft LCD Module.
Iyo inosimudzira LCD skrini isingabudise chete-inopenya zuva rakananga kuona, asi zvakare anoziva huwandu hwakawanda kupisa kwe -40 × kusvika 95 ℃. Uye 300nit - 5000nit (grey kukosha) Ultra yakawandisa kupenya.
Inoshandiswa zvakanyanya mu neziso risina kupfeka 3D kuratidza, Express
| brand | LG Display (LG Display) | Model name | LA103WF1-SL02 |
| size | 10.3" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×720 167PPI | Pixel configuration | RGB vertical bar |
| Display size | 243.648×91.368(H×V)mm | Surface treatment | Hard coating (3H) |
| Open zone | 244.653×92.36(H×V) mm | contrast | 850:1 (Typ.) |
| Brightness(cd/m²) | 850 cd/m² (Typ.) | Apply to | Outdoor highlight, car display |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Appearance of size | 260×110.8×14.15(H×V×D) mm |
| Signal system | LVDS (2 ch, 8-bit) , termina |
|
|
| Maximum rated | Storage temperature: -40 ~ 95 °C Working temperature: -30 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²) |
|
|
Matagi anopisa: 101 , 2000NIT yakakwira LCD Ratidza, Ultra kupenya kuratidza , LCD Panel, LCD Module, Kupenya Kwakakura Kuratidzwa.
