Muenzaniso Nha.: C102EVN01.0

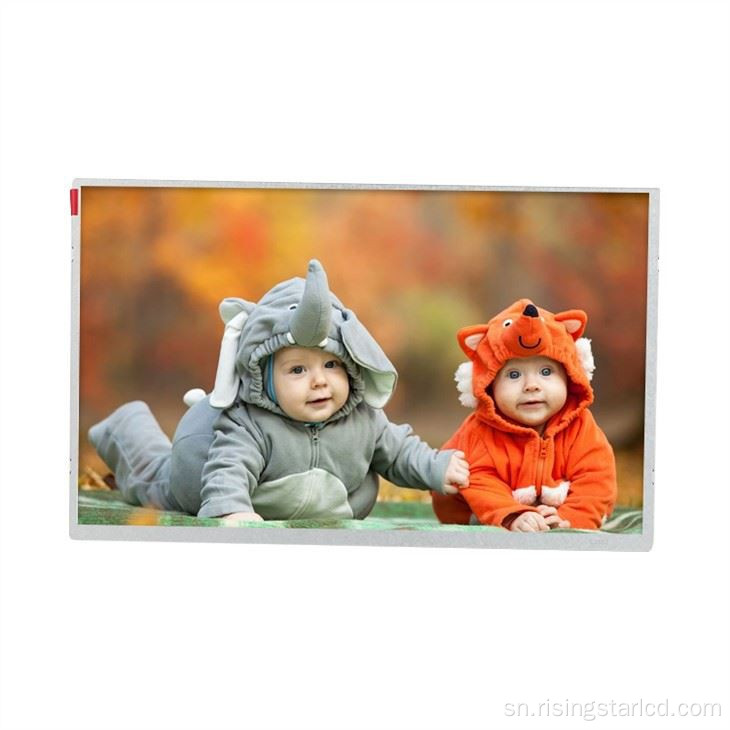

10.2 "Auo C102EVN01.0 Kupenya 1000nits Tft LCD Module.
Kunze kwechokwadi kunogona kunakidzawo muzuva.
HD kuratidzwa, uchishandisa zvakananga pasi yakatsika kumashure, kupenya kweLCD kunogona kusvika 1000-5000nits (inogona kugadziriswa), kupenya kwunifomu, kusiyana kwakakwirira.
| brand | AUO | Model name | C102EVN01.0 |
| size | 10.2" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×720 WXGA 143PPI | Pixel configuration | RGB vertical bar |
| Display size | 226.56(H)×127.44(V) mm | Appearance of size | 245.76(H)×150.68(V) ×11.05(D) mm |
| Visual size | 231.06(H)×133.64(V) mm | Surface treatment | Mist side，Antireflection processing |
| Brightness(cd/m²) | 1000 cd/m² (Typ.) | contrast | 2000 : 1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Apply to | Car show and outdoor highlighting |
| Signal system | 40 pins LVDS (2 ch, 8-bit) , terminal | ||
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -40 ~ 95 °C |
Mota dzinopisa: 101 , kupenya kwakanyanya kuratidza panel
