Muenzaniso Nha.: P215HAN02.0

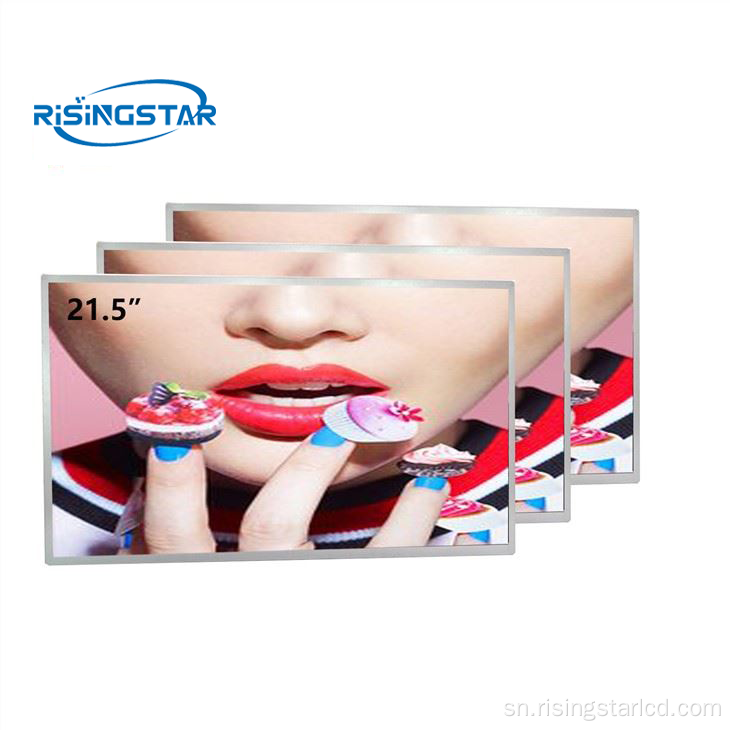

21.5 "Auo P215han02.0 Tft LCD Module
Simbisa rgb ruvara rwemufananidzo
RGB ruvara modhi, kuitira kuti mifananidzo nemavhidhiyo zvinoratidzwa muchiratidziro zvakakwirira-tsanangudzo yekunyora munzvimbo ine mwenje wakasimba, iyo skrini inosimbisa yakajeka pane yakajeka kupfuura iyo yakajeka skrini.
500-5000nit kupenya kugadzirira, kudzora chaiko kwekujeka kwenzvimbo imwe neimwe.
brand | AUO | Model name | P215HAN02.0 |
size | 21.5.0" | Screen type | a-Si TFT-LCD,LCD module |
resolution | 1920(RGB)×1080, FHD, 102PPI | Pixel configuration | RGB vertical bar |
Display size | 304.128(H)×228.096(V) mm | Appearance of size | 501.1(H)×292.2(V) ×16.12(H) mm |
Visual size | 480.7(H)×271.8(V) mm | Surface treatment | Mist side,Hard coating (3H) |
Brightness(cd/m²) | 1500 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Apply to | Digital signage and outdoor highlighting |
Signal system | 30 pins LVDS (2 ch, 8-bit) , terminal | ||
Maximum rated | Storage temperature: -20 ~ 60 °C Working temperature: -20 ~ 50 °C |
Matagi anopisa: 21.5 "Auo P215han02.0 Tft LCD Module, China, Yakatadza, 98 Inch Lcd Skrini, Kunze LCD Screen, LCD Board , Kunze kweTV kuratidza
