Muenzaniso Nha.: G101EVN03.1

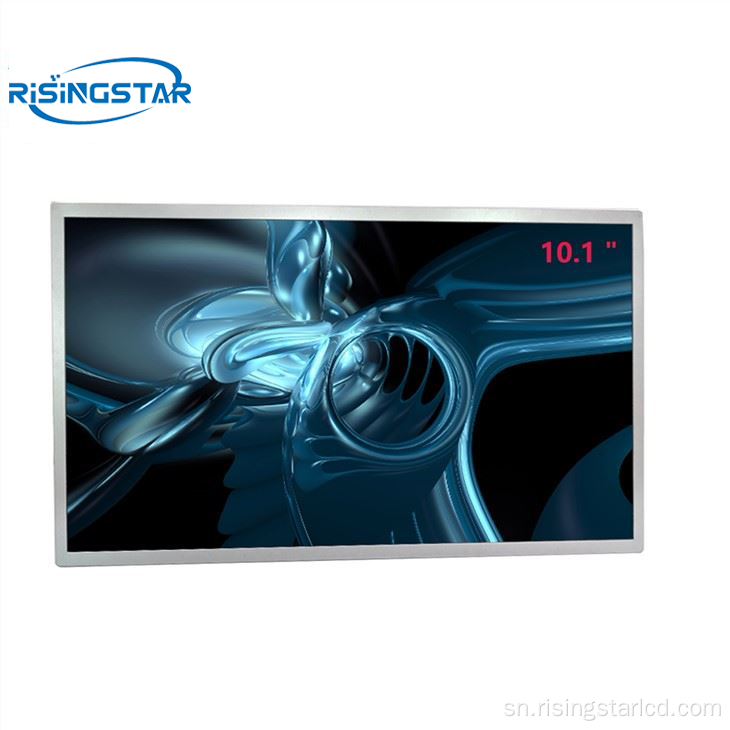

10.1 "auo g101EVN03.1 Tft LCD Module
Mufananidzo Uni Technology Tekinoroji.
Rima rakasviba, mwenje unopenya.
Industrial Giredhi Liquid Crystal, kuti ive nechokwadi chemhando yekristaro yemvura.
NTSC 72% Ruvara rwejut kuvhara, dzosera rakapfuma mufananidzo ruvara.
Zvakafanana saizi modhi: g101EVN03.0, C101uan01.0
| brand | AUO | Model name | G101EVN03.1 |
| size | 10.1" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×800, WXGA, 149PPI | Pixel configuration | RGB vertical bar |
| Display size | 216.96(wide)×135.6(high) mm | Surface treatment | mirror (Haze 0%) |
| Brightness(cd/m²) | 1000 cd/m² (Typ.) | contrast | 1300:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | LVDS (1 ch, 6/8-bit) , 40 pins , terminal | Appearance of size | 227.69×148.31×7.75(H×V×D) mm |
| Maximum rated | Storage temperature: -30 ~ 70 °C Working temperature: -20 ~ 60 °C |
|
|
Matagi anopisa: 10.1 Vhura Frame LCD Modules, Supply Kunze Kwekunze , LCD Panel, LCD Module, Kupenya Kwakakura Kuratidzwa.
