Muenzaniso Nha.: G170ETN02.1

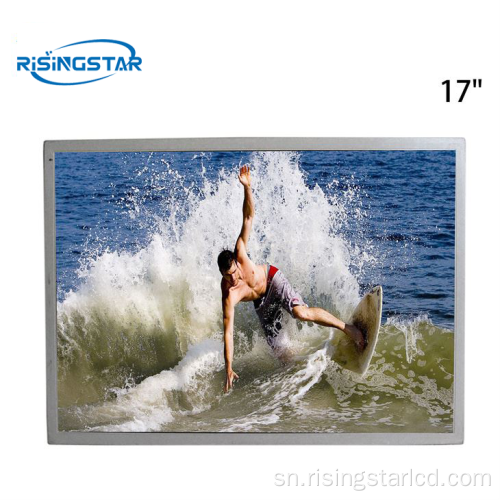

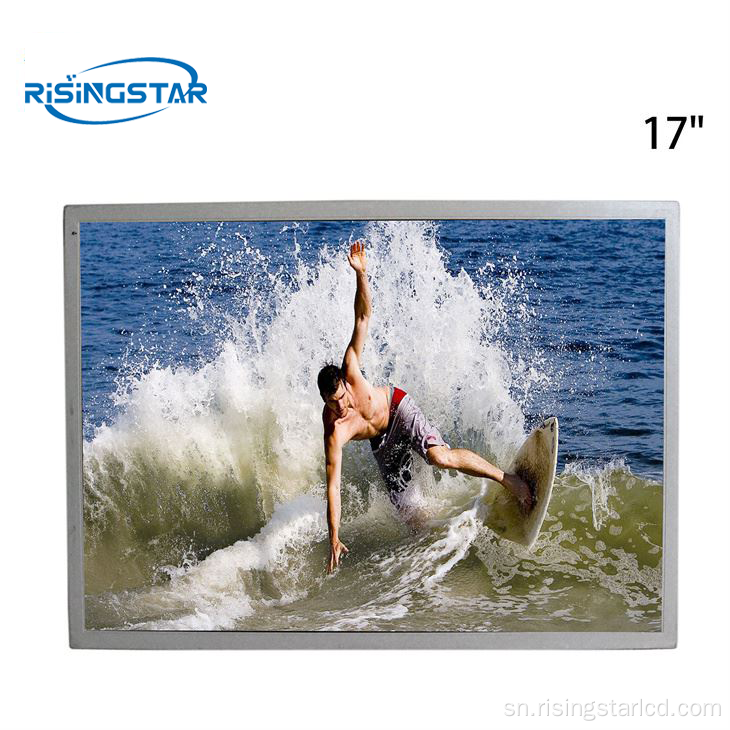

17.0 "auo g170etn02.1 tft lcd module
Usatya zuva, patent dhizaini Ultra-Mutete Dhizaini, Black Earth Earth Technology.
Usatya zuva rajekesa zvakajeka.
Ntsc 72% ruvara rwejuru yekuvhara, dzosera super yakapfuma mufananidzo ruvara.
500-5000nit kupenya kugadzirira, kudzora chaiko kwekujeka kwenzvimbo imwe neimwe.
Yakakwira tembiricha yemvura yekristaro inovimbisa yepamusoro inoratidza mhando kunyange mumamiriro ekunze ekunze.
| brand | AUO | Model name | G170ETN02.1 |
| size | 17.0" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×1024 [SXGA] 96PPI | Pixel configuration | RGB vertical bar |
| Display size | 337.92 × 270.336 mm (H×V) | Appearance of size | 358.5 × 296.5 mm (H×V) |
| Visual size | 341.6 × 274.0 mm (H×V) | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 800 (Typ.) | contrast | 700 : 1 (Typ.) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | LVDS (2 ch, 8-bit) , terminal , 30 pins |
|
|
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 85 °C |
|
|
Inopisa tags: 17.0 "auo g170etn02.1 Tft LCD Module, China, Ultra Screen, 55 Inch Lcd Inoratidzwa, 2500nits, kupenya kwakanyanya kubata Screen , LCD Panel, LCD Module, Kupenya Kwakakura Kuratidzwa. , LCD Panel, LCD Module, Kupenya Kwakakura Kuratidzwa.
