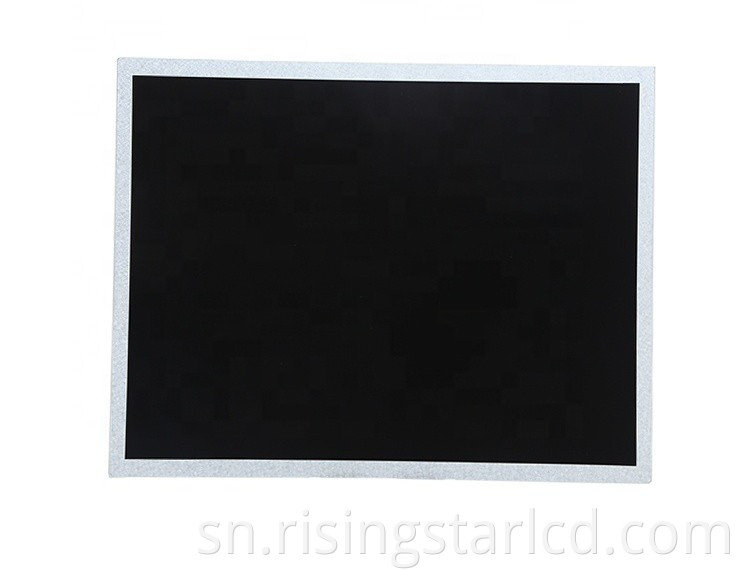

15 "Kupenya Kwakanyanya LCD Panel 1500CD / M2
1. Nhanganyaya
Iyo ndiyo ruvara inoshanda matrix mutenderedzwa firimu transistor (Tft) Liquid Crystal Ratidza (LCD) iyo inoshandisa Amorphous silicon tft sekuchinjika. Iyo inoumbwa neTft TFT LCD PANEL, Backlight System, Dramr Driver uye mutsara wedunhu redunhu. Iyi tft lcd ine 15.0-inch diagonally yakayerwa Inoshanda Inoshanda nzvimbo neSarudzo (1024 yakatwasuka ne768 vertical pixels array).
2 maficha
15.0 "TFT LCD Panel
LED Backlight System
Inotsigirwa 1024x768 pixels resolution
Zvinoenderana ne rohs standard
|
Size |
15inch |
|
Resolution |
1024*768 |
|
Pixel Pitch (H x V) |
0.297 x 0.297mm |
|
Pixel Arrangement |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Brightness(nits) |
1000-1500 |
|
Contrast Ratio |
800:1 |
| Input Voltage | 3.3V |
| View Angle(L/R/U/D) | 80/80/80/80 |
| Response Time(ms) | 16ms |
| Optical mode | TN |
| Operating Temperature | -20-70° |
| Storage Temperature | -30-80° |
| Interface | LVDS/8-bit |
| Lamp type | LED |
| LED Life Time(Hrs) | 30,000Hours |
| Active Area(mm,H*V) | 304.13*228.10 |
| Outline Dimension | 326.50*253.50*12.00 |
|
Weight |
960g |
|
Support Color |
16.2M |
|
Optimum Viewing Direction |
6 o’clock |
|
Surface Treatment |
Anti-glare, Hard-Coating (3H) |
|
Authentication |
ROSH/UL |
| Size | 15inch |
| Panel item | RS150NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1024*768 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 800：1 |
| View angle | 80/80/80/80 |
| View area | 313.55*2378.25mm(H*V) |
| Dispaly area | 304.128*228.096mm(H*V) |
| Outline Size | 326.5*253.5*10mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | 0- 65.0ﾟC |
| Storage Temperature | -20- +65.0ﾟC |
| Backlight Type | WLED |
| Display color | 16.7m |
| Surface Treatment | Haze ,Hard coating(3H) |
| Drive-screen Voltage | 3.3V |
| Backlight Power Consumption | 13w |
| Weight | 1kgs |
Mota dzinopisa: 15 Yakakwira Kupenya LCD PANEL 1500CD
15Inch 1000nits LCD Screen
Smart Directory Kunze kweLCD Ratidza Screen
